Practice Exercise 23 Answers
-
Encode the following byte values using NRZL, NRZI and Manchester encoding
techniques.
NRZL -- Non-return to Zero, Level
a.) 00000000 b.) 11111111 c.) 10101010

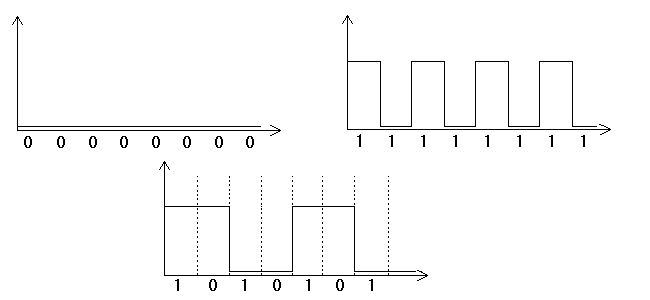

NRZI -- Non-return to Zero, Inverted
a.) 00000000 b.) 11111111 c.) 10101010

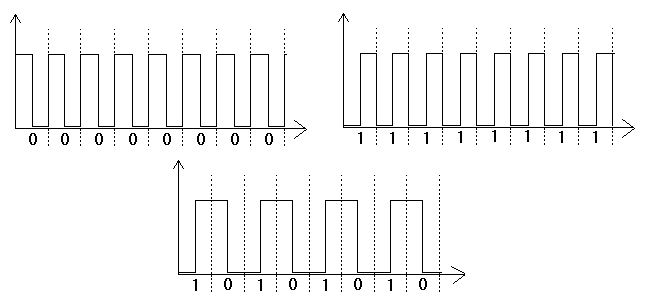

Manchester
a.) 00000000 b.) 11111111 c.) 10101010
-
Using bit-stuffing (after 5 consecutive 1's, insert an extra 0),
encode the following bit stream.
11011111 111011111 11111 10101011100000
0 0 0
gives ...
110111110111011111011111010101011100000
-
All the extra bits that surround the actual data in a packet have to be
transmitted over the wire, too, so they consume time that could be spent
transmitting real data. We call this the overhead
that the protocol imposes.
Consider the packet format in Section 3 of Chapter 25:
a.) How many bits will always get transmitted, even if there are 0
data bytes?
8 + 16 + 16 + 8 = 48
b.) If the maximum number of bytes are transmitted, how long will the
entire packet be (in bytes?)
16 1's = 65535 bytes
65535 + 48/8 = 65541
c.) What is the overhead of this longest packet in percent?
6 / 65541 = .009%
d.) If most packets only contain 1024 data bytes, what is the overhead
(in percent)?
6 / (1024+6) = 0.58%
-
Suppose that a particular connection-oriented protocol requires that an
ACK be sent after each correct packet is sent. ACKs are 15 bytes long. Data
packets can contain up to 4Kbytes of user data and contain 20 bytes of header
each.
a.) How many packets would a 1 Megabyte data file be split into?
1048576 / 4096 = 256 packets (4K = 4096)
b.) Counting all the header bytes of all the packets, how many extra
bytes would need to be transmitted just by the sender side to
get this file over?
256 x 20 = 5120 bytes
c.) How many bytes of ACKs would the receiver have to send,
assuming there were no errors?
15 x 256 = 3840 bytes
-
For each of the following values of N, tell how many wires there would
need to be for various network topologies. For meshes, the connectivity
number is given as the minimum number of wires that touch each and every
node. There may be more, but there must be at least this many.
N=5 N=10
---------------------------------------------------------------------------
fully connected 10 45
---------------------------------------------------------------------------
token ring 5 10
---------------------------------------------------------------------------
star 4 9
---------------------------------------------------------------------------
mesh, con=2 5 10
---------------------------------------------------------------------------
mesh, con=3 8 15
---------------------------------------------------------------------------

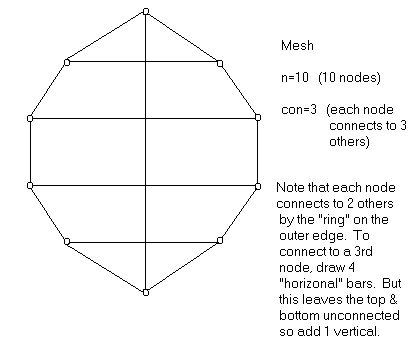

(below are some pictures that help explain the mesh values...)
-

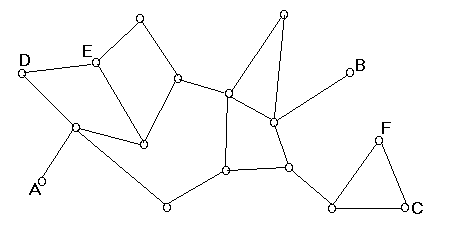

What is the diameter of the following mesh network?
7
Consider the following source/destination pairs and the
shortest route between them:
A -> B = 6 hops
A -> C = 6 hops
D -> C = 6 hops
D -> B = 6 hops
E -> F = 7 hops
-
If the routing tables did not have any default entries, how large would
they be if there N nodes in the network?
N-1 entries in each routing table
-
For the mesh network of Fig. 28 of Chapter 25, write out routing tables
for nodes C, E and H. Try to distribute the packets somewhat evenly. You
may use default entries if you like.
Node Destination Send to...
----------------------------------------------------------
C: default B
(C can only send to B so it just sends every packet there.)
E: A B
C B
D F
I F
H G
H: I F
D F
E F
A G (or just say default...)
B G
C G
