Fig. 17.4.1 shows this association:

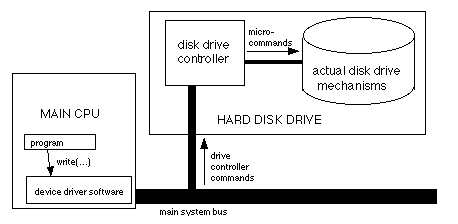

Fig. 17.4.1: Main CPU communicating to disk drive controller via device driver software

Because of the presence of the disk drive controller, some disks number the sectors consecutively from 0 up to the maximum on the whole drive, allowing the operating system to specify a sector number without knowing which track or surface it is on. The controller then does the translation to an actual surface, track and sector.
