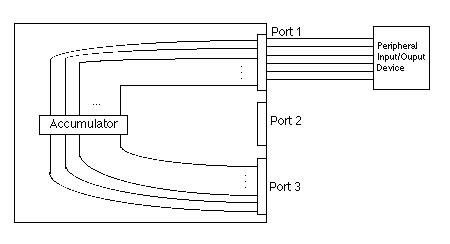

Fig. 18.1.1 shows in a very general way how I/O ports connect to peripherals. Usually ports connect to internal buses which feed the input and output wires of the accumulator.
|
|
Fig. 18.1.1 shows in a very general way how I/O ports connect to peripherals. Usually ports connect to internal buses which feed the input and output wires of the accumulator.
|
