Section 7.6: Example of control points and the fetch/decode/execute cycle (Frame 12)                     [prev][home][next]

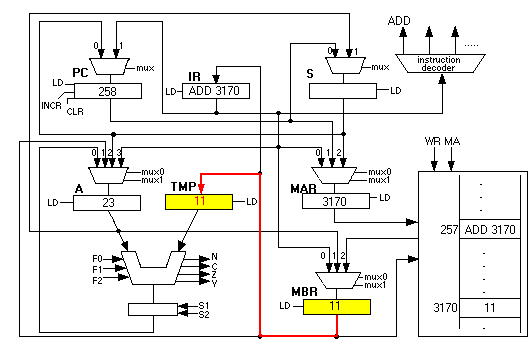

  1. Then we set TMP-LD high which copies the MBR into TMP, and turn off MA. This is the end of the operand fetch stage.
