Section 7.6: Example of control points and the fetch/decode/execute cycle (Frame 14)                     [prev][home][next]

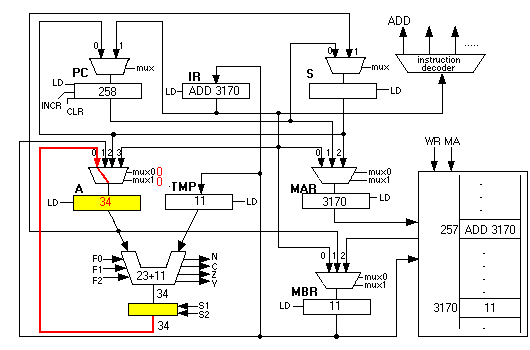

  1. The output of the shifter is selected by the A-MUX wires; all other inputs to the A register are of course ignored. A-LD is turned on and the new value is latched into the A register. This is the end of the execute phase.
