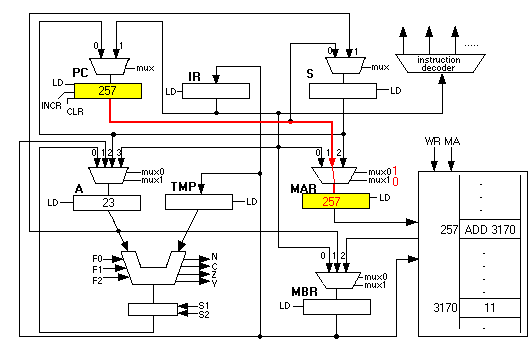

  1. The first thing to happen is to set the MAR-MUX so The MAR-MUX is set so that PC's output is copied into MAR when MAR-LD goes high. This puts the address of the next instruction into MAR:
