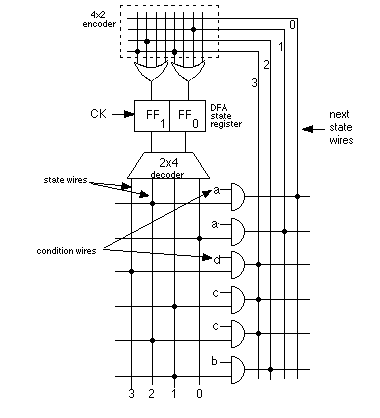

1. Referring to the following hardware DFA, write the next state number in the blank provided for each combination of current state and condition.

                 In state...     on condition...          go to state...

                      2               a                   _____________

                      2               c                   _____________

                      3               d                   _____________

                      0               a                   _____________

                      1               c                   _____________

                      1               b                   _____________

2. If there were 20 different states, how many flip-flops would you need for the DFA state register?

3. Show the AND gate that controls the S₁ control wire. Which instructions set the S₁ wire? (S₁ is one of the inputs to the shifter.)

4. Since the IR register is only changed at one point during the instruction cycle, what STATE wire would control IR-LD? (Refer to Fig. 7.7.2)

5. Which instructions cause the DFA to move directly from state 2 to state 4, bypassing state 3 entirely? (Refer to Fig. 7.7.2)
