Bits are stored in the tracks as though each track were one long ribbon of magnetic tape. However, because each track usually holds a vast number of bits, the system breaks each track into a number of logical sectors, which are pie shaped wedges of the tracks. There is a small gap between each sector that is not used for data.

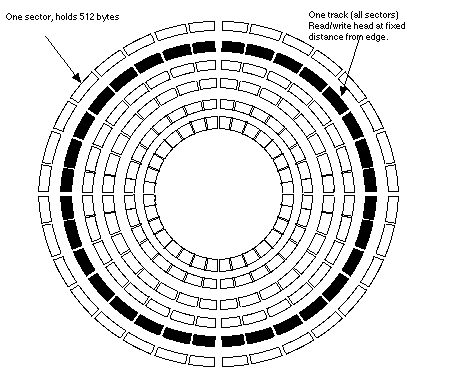

Fig. 17.2.5: Sectors
